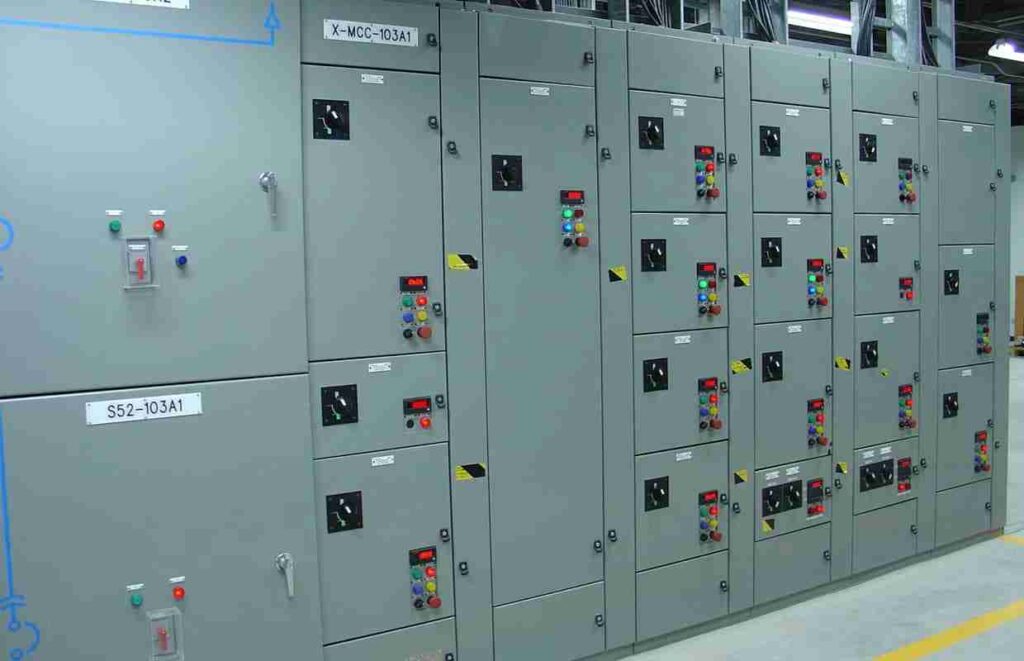

Three Phase Power Control Center
Three Phase Power Control Center
Three Phase Power Control Center are modular structured electrical control panel used to power control center panel supply in large industrial as well as commecial units. Power supplied to big and heavy machineries, equipments, motors and transformers are controlled as per the requirement. Main LT Panel / PCC Panel with single / multiple Incomers, Bus coupler with Electrical and/or mechanical interlocking are provided.
Protective Relays, Indication lamp, Meters are to be provided whichever required.
Three Phase Power Control Center are offered with various Design like Top / Middle / Horizontal Bus bar chambers, Panel with Aluminum or Copper Bus bar, Top / Bottom / Front / Rear cable Termination.
Combination of APFC part with the Panel.
Facilities like DG Incomer with AMF function, Cut-off of non-essential feeder at the event of Mains supply.
Three Phase Power Control Center with provision to connect bus duct at main Incomer side.
Three Phase Power Control Center Technical Features
Three Phase Power Control Center Construction Details
- Modular / Non- compartmentalized construction.
- Panel structure with MS CRCA/SS.
- Indoor / Outdoor type Structure.
- Single front/double front Operated.
- Provision for Extensible for future use.
- Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
- Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65. Arrangement for heat dissipation by means of Exhaust Fan or Lowers.
Three Phase Power Control Center Pre Treatment And Painting
Three Phase Power Control Center Bus Bar Arrangement
- Electrical Grade Aluminum / Copper Busbar
- Main busbar chamber at top / bottom of the Panel
- Separate chamber for vertical dropper
- Busbar System design on basis of continuous Current rating and Fault level with stand capacity
- Allowable temperature rise as per IS 8623 or as per specifications
- Busbar supports of SMC/DMC Material
- Top / Bottom cable entry. Detachable gland plate for cable entry
Three Phase Power Control Center Assembly & Wiring
Three Phase Power Control Center Quality Assurance & Control Systems
