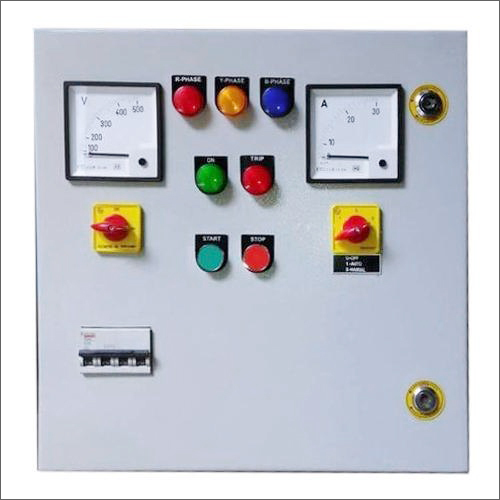

Starter Panel
Starter Panel
Starter Panel are modular structured electrical control panel used to power control center panel supply in large industrial as well as commecial units. Power supplied to big and heavy machineries, equipments, motors and transformers are controlled as per the requirement. Main LT Panel / PCC Panel with single / multiple Incomers, Bus coupler with Electrical and/or mechanical interlocking are provided.
Protective Relays, Indication lamp, Meters are to be provided whichever required.
Starter Panel are offered with various Design like Top / Middle / Horizontal Bus bar chambers, Panel with Aluminum or Copper Bus bar, Top / Bottom / Front / Rear cable Termination.
Combination of APFC part with the Panel.
Facilities like DG Incomer with AMF function, Cut-off of non-essential feeder at the event of Mains supply.
Starter Panel with provision to connect bus duct at main Incomer side.
Starter Panel Technical Features
Starter Panel Construction Details
- Modular / Non- compartmentalized construction.
- Panel structure with MS CRCA/SS.
- Indoor / Outdoor type Structure.
- Single front/double front Operated.
- Provision for Extensible for future use.
- Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
- Arrangement for heat dissipation by means of Exhaust Fan or Lowers.
Starter Panel Pre Treatment And Painting
Starter Panel Bus Bar Arrangement & Cable Alley
- Electrical Grade Aluminum / Copper Busbar
- Main busbar chamber at top / bottom of the Panel
- Separate chamber for vertical dropper
- Busbar System design on basis of continuous Current rating and Fault level with stand capacity
- Allowable temperature rise as per IS 8623 or as per specifications
- Busbar supports of SMC/DMC Material
- Top / Bottom cable entry. Detachable gland plate for cable entry
Starter Panel Assembly & Wiring
Starter Panel Quality Assurance & Control Systems
